Outstanding Performance

Speed Loop Bandwidth of 1.6 kHz

• Shortens the settling time, reduces thepositioning time, higher throughput Overload 350% for 3 – 5 sec
• High peak torque, fast acceleration, noamplifier oversizing Ambient Temperature 0 – 55 °Cwithout derating
• No air conditioning, reduced cooling High encoder resolution:
• 20 bit => 1.048.576 information perrevolution Highest positioning  accuracy, better product quality,less waste

Space Saving

Reduced overall package size

• Less mounting space, moreamplifiers in a smaller cabinet.

Proven Quality

More than 8.000.000 servo systemsin the field

• Improved machine reliability,reduced service and maintenance costs,less standstill time

Easy Tuning

Advanced Autotuning, OneParameter Tuning

• Faster commissioning, for 80% of applications notuning necessary

Excellent anti vibration control

• Simpler mechanics with less weight,higher machine production,less energy consumption

Safety Features

Advanced Functional Safety

• Meets new Machinery Directive,maintenance and commissioning during machine operates, less external components.

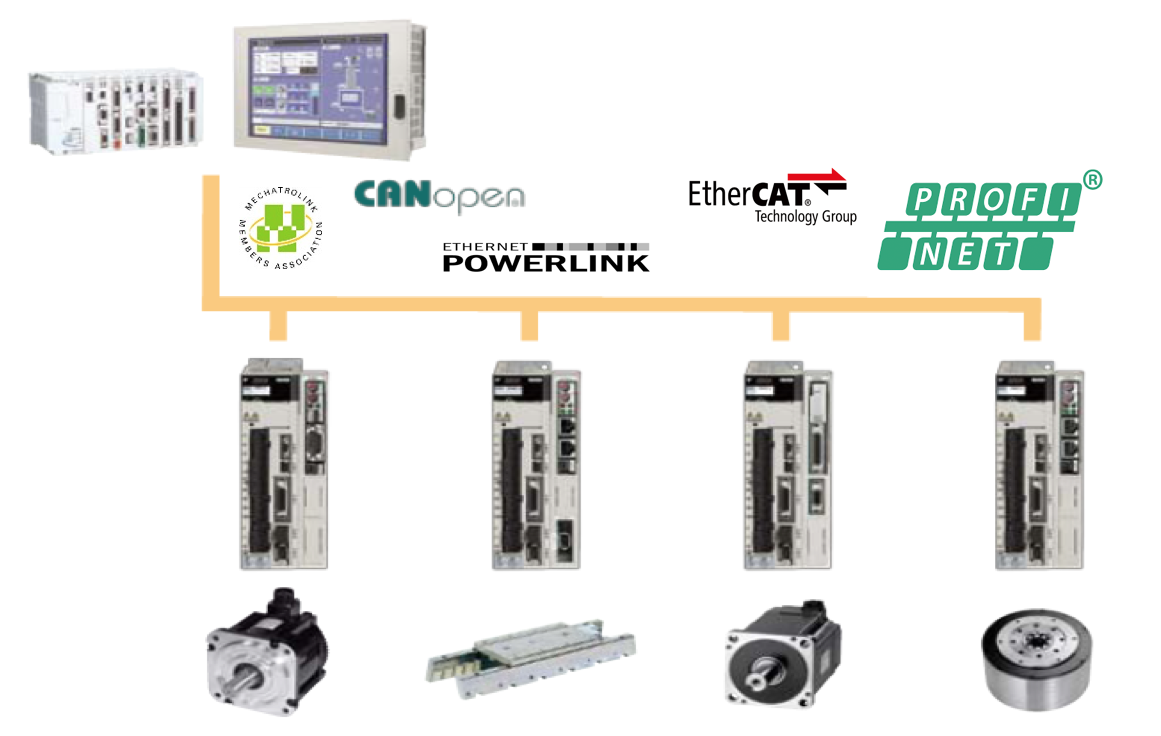

Unrivaled System Integration

Servo Amplifiers

• 200 V class, 300 W to 15 kW
• 400 V class, 300 W to 15 kW
• Analog/Pulse, Mechatrolink-2embedded, Mechatrolink-3 embedded

Rotary Servo Motors

• 5 different rotary motor series inlow and medium inertia
• 200 V class, 300 W to 15 kW, 1.96 Nm to 95.4 Nm
• 400 V class, 200 W to 15 kW, 1.96 Nm to 95.4 Nm
• Motor vibration resistance 5 G
• Incremental/absolute encoder

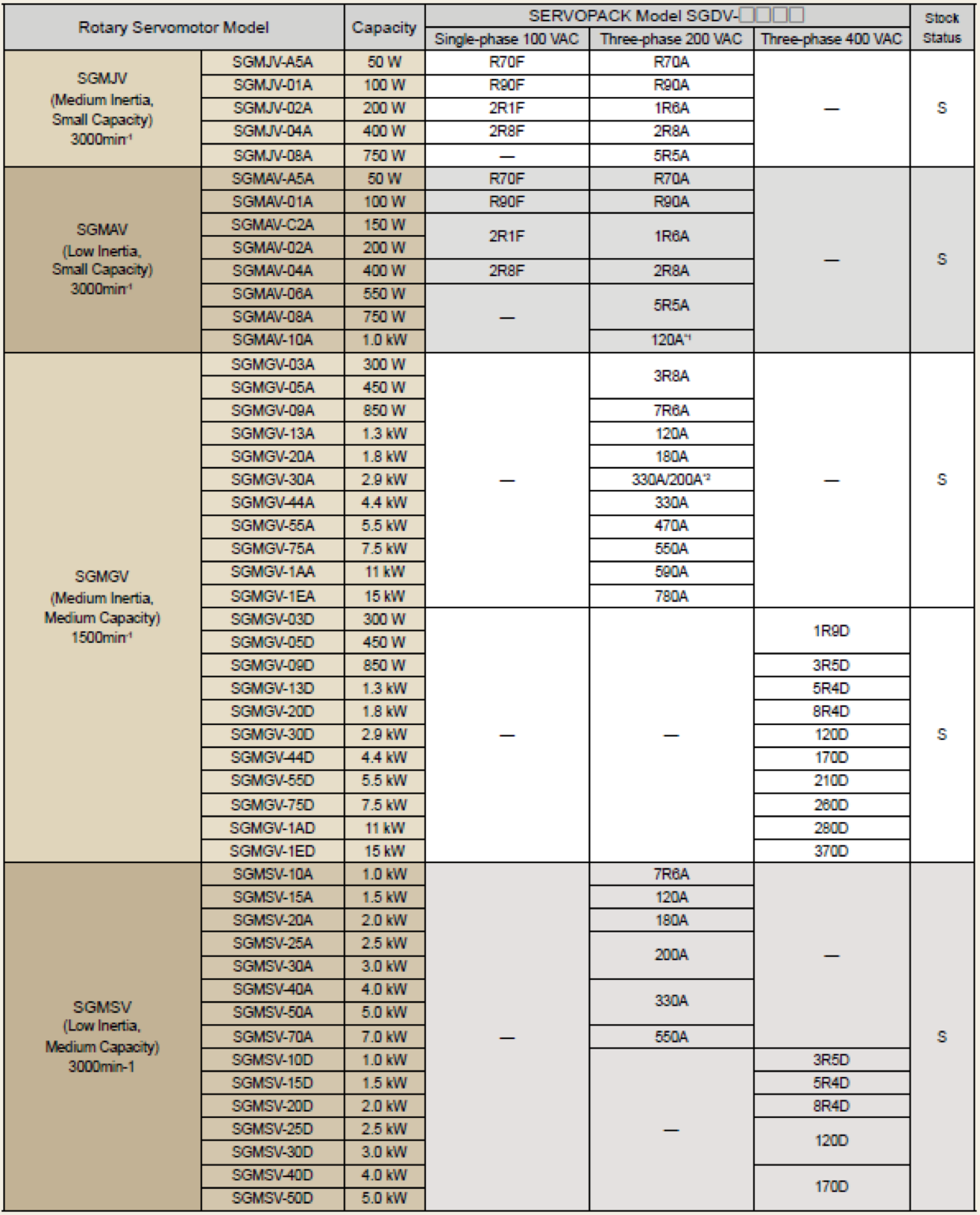

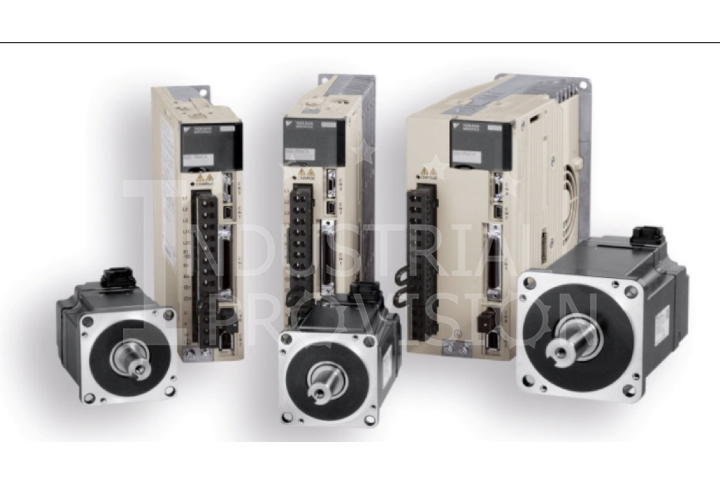

 Servo Motor and Servo Pack
